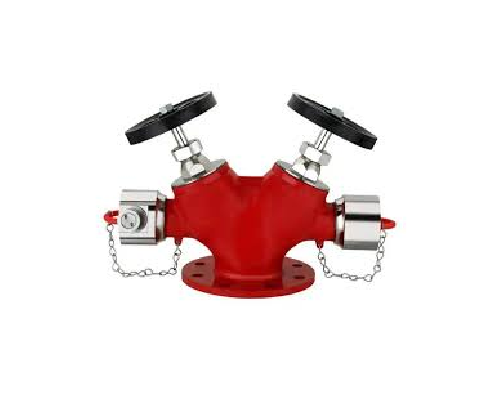

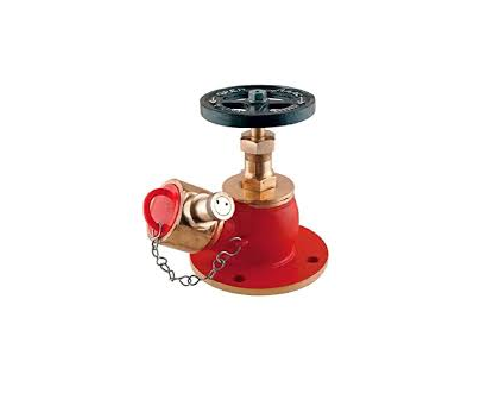

Hydrant/landing Valve Single / Double Outlet

TECHNICAL SPECIFICATIONS

Size: 63mm/75mm/80mm

Inlet: 3" NB Flanged for Single Outlet 4" NB Flanged for Double Outlet

Outlet: Female Instantaneous

Material: Gun metal/ Stainless Steel

Conforming Specification: IS:5290, Type 'A'

Performance Test:

Hydrostatic Test (Body Test): Tested at 23 kgf/cm²

Water tightness (Seat Test): Tested at 14 kgf/cm²

Flow Test: 900 LPM discharge at 7 kgf/cm²

Other Range: 38mm/50mm

Hand Wheel: Grey Cast Iron
